Everyway4all CA65 "TRIO" 3 Section Therapeutic Table / Couch (1 Motor) with 4-side Elevating Bars

The 3 Section Therapeutic Table is one of the most popular single product in existing product range. This is all due to its versatility in terms of adjustable head and foot drop sections.

Hydraulic version (CA65H) is also available.
Equipped with 1 Motorized Actuator for Hi/Lo Adj.
Twin “Oversized” Pillars for Added Stability
Retractable Castors at Both Ends
Twin Gas Struts for Solid Head and Leg Sections Support
Maximum User Weight :225 kgs / 496 lbs
100~240VAC (Universal Voltage)
Plug Type: US Plug

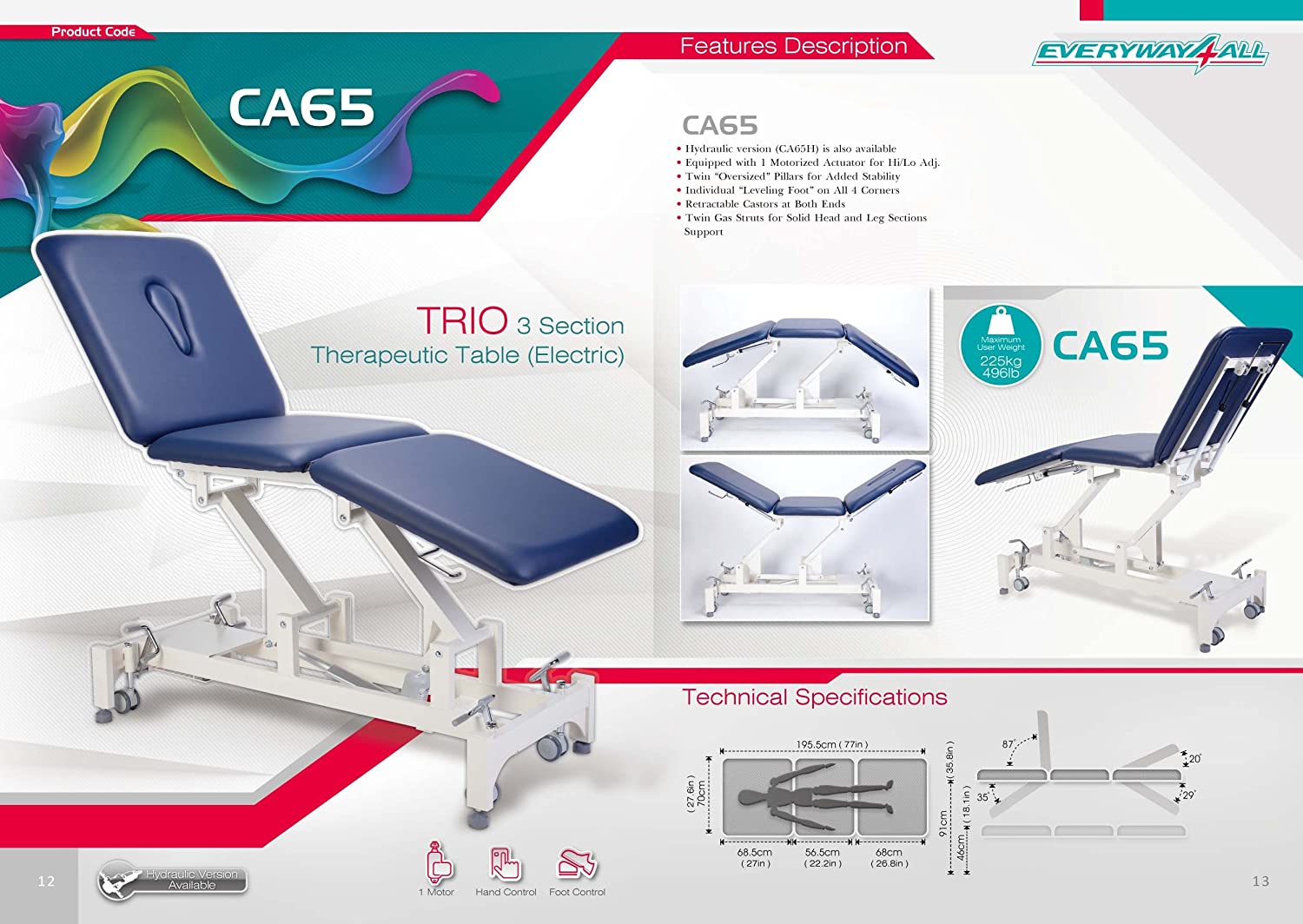

Technical Specifications:

• Minimum Height: 460mm / 18.11” inch
• Maximum Height: 910mm / 35.83” inch
• Table Top Width: 700mm / 27.56” inch

• Head Section Length: 685mm / 26.97” inch
• Mid Section Length: 565mm / 22.24” inch
• Leg Section Length: 680mm / 26.77” inch
• Total Length: 1955mm / 76.97” inch

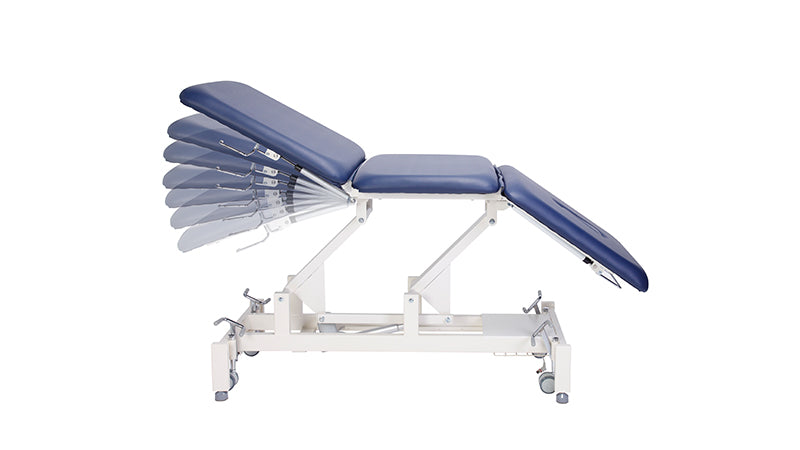

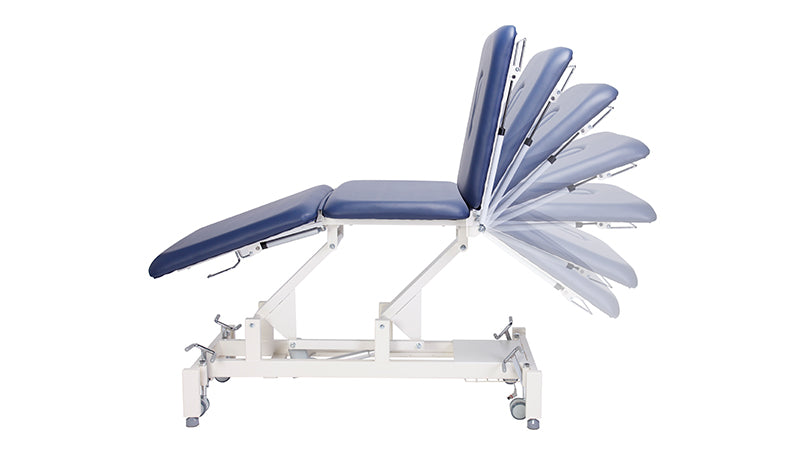

• Head Tilt Angles: -35º to +87º
• Leg Tilt Angles: -29º to +20º
• Lift Mechanism: Electric
• Breathing Hole/Plug: 1

• Retractable Castors: 4
• Weight Rating (Max. Load): 225kgs / 496lbs

• Weight: 190 lbs.
• Package Dimension: 88X30X22”H

Electrical Data:

• Control Box Input Voltage & Rating: 100~240VAC, 50/60Hz, 2A
• Control Box Output Voltage: DC 32V, 80VA

• Actuator Input Voltage: DC 24V
• Duty cycle: Max. 10% 2min. ON / 18min. OFF
• Max. Load: Push 8000N
• Max. Current: Max. 6A

CERTIFIED TO AAMI / CSA / IEC / EN STD

AAMI ES 60601-1, CSA-C22.2 NO. 60601-1

IEC 60601-1, EN 60601-1

The electrical components used are approved by IEC 60601-1

Shipping Policies:

• We offer standard free shipping to domestic excluded Alaska, Hawaii and Puerto Rico.
• Standards shipping included Curbside Delivery and Liftgate Service.

• If you require the item to be delivered inside of the building (Inside Delivery), or you need the carrier unbox and assembly for you (White- Glove services), please contact us for the freight quote before purchasing.

Warranty policy:

1. 12-month on upholstery, head/foot/switch controls, castors leveling foot, and gas struts
2. 24-month on motorized actuator, control box, and metal side bars
3. 36-month on table frame and table pillars
