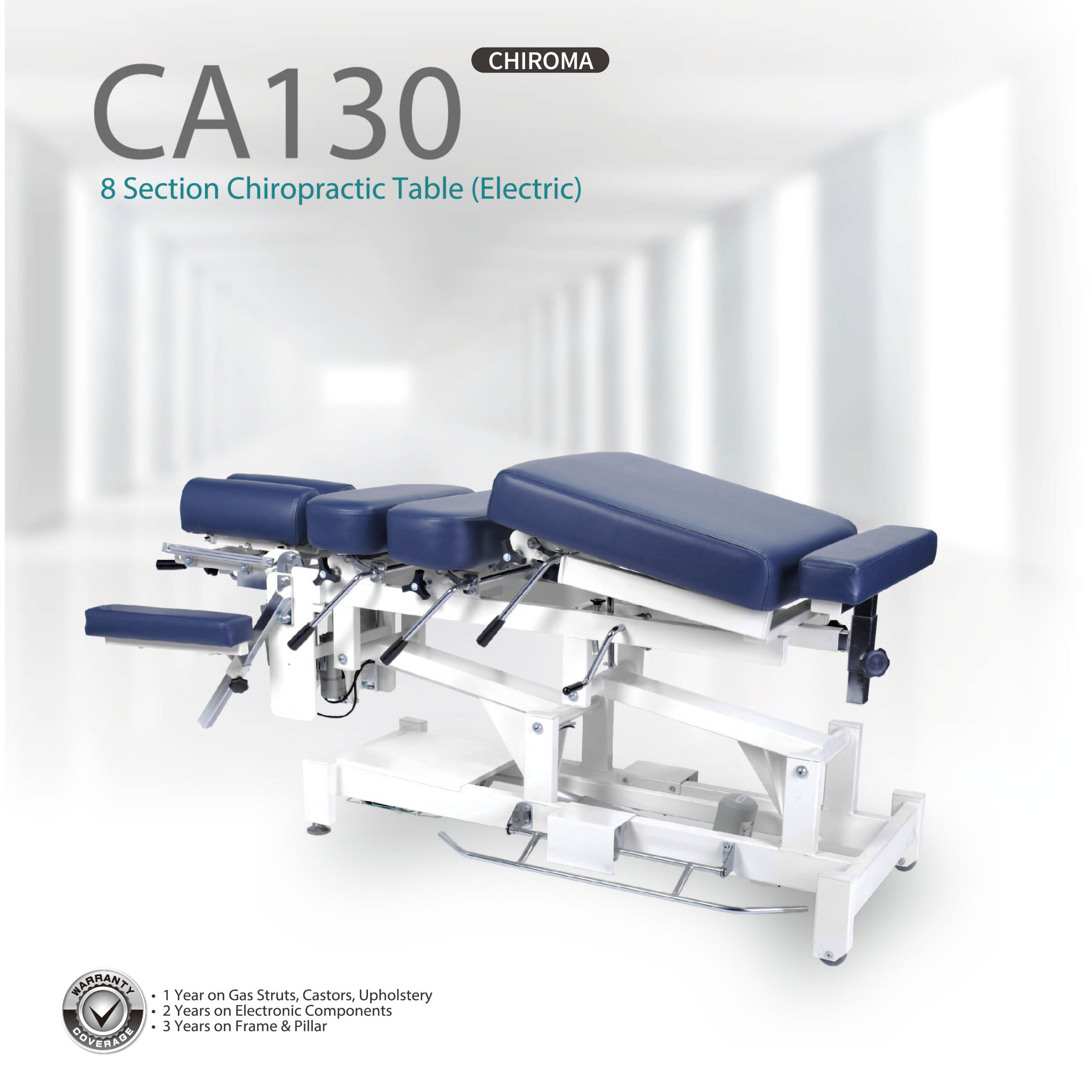

Everyway4all CA130 "CHIROMA" 8 Section Chiropractic Table (3 Motors) with 2-side Elevating Bars

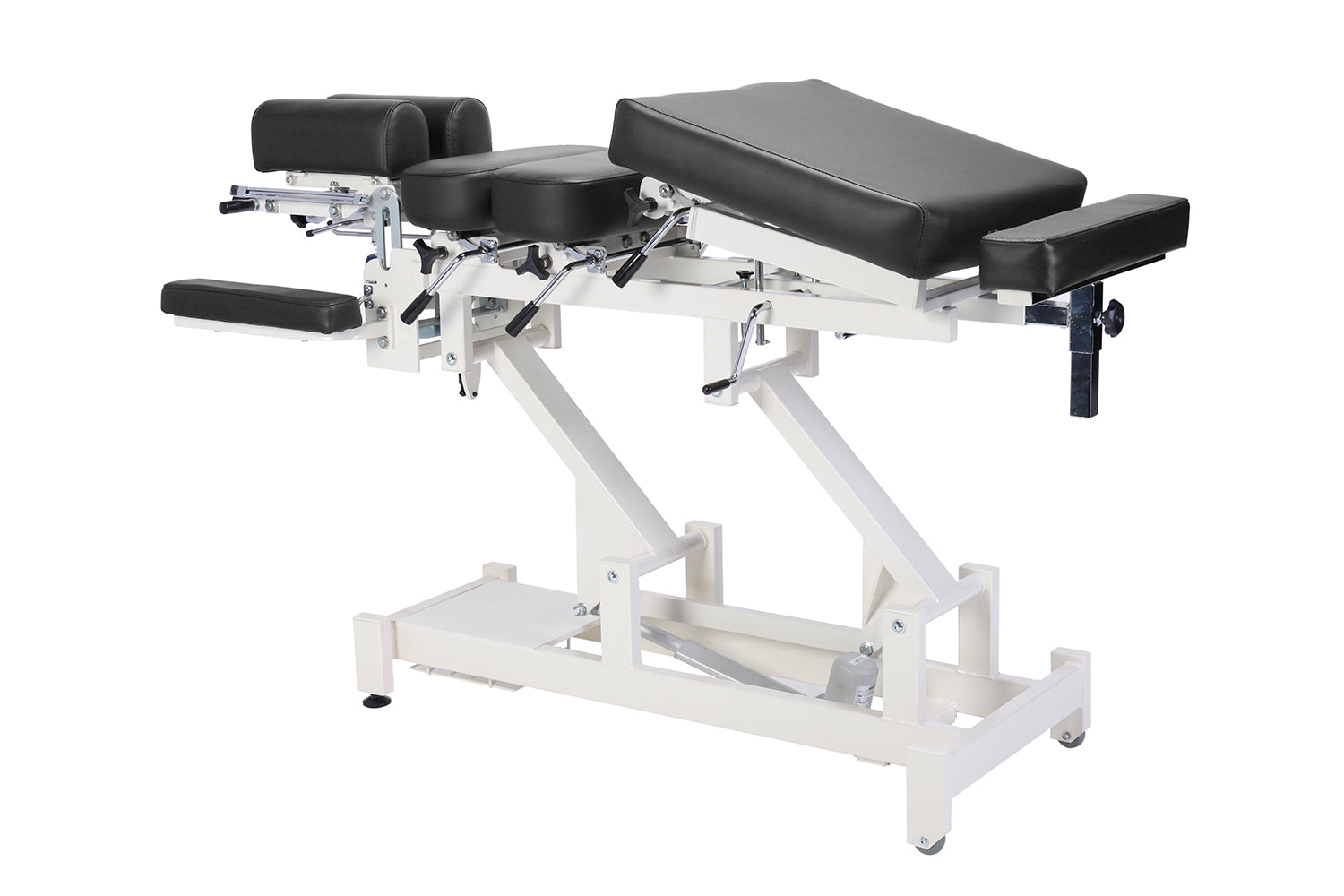

Color: Black
Price:
Sale price$4,250.00

Description

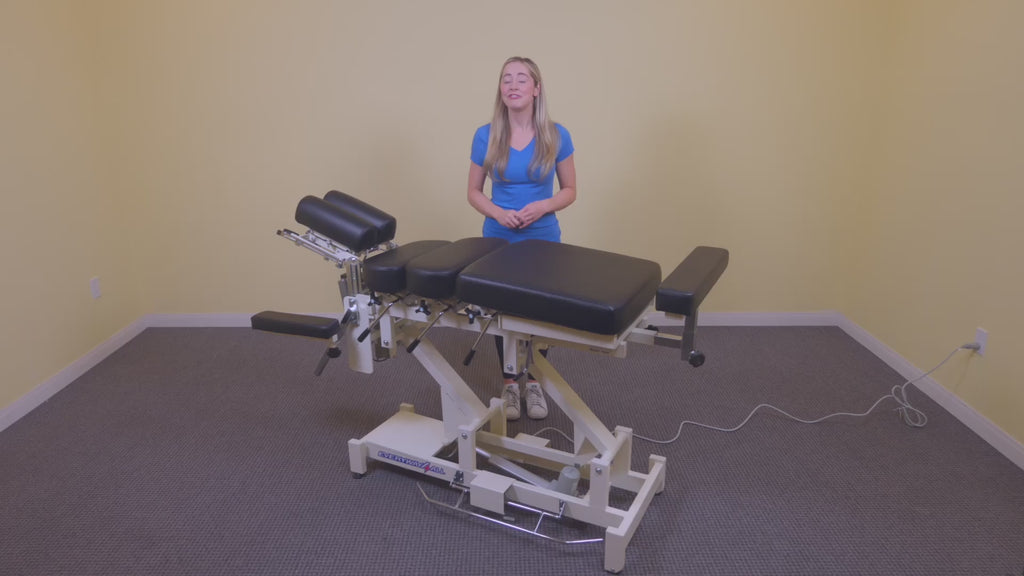

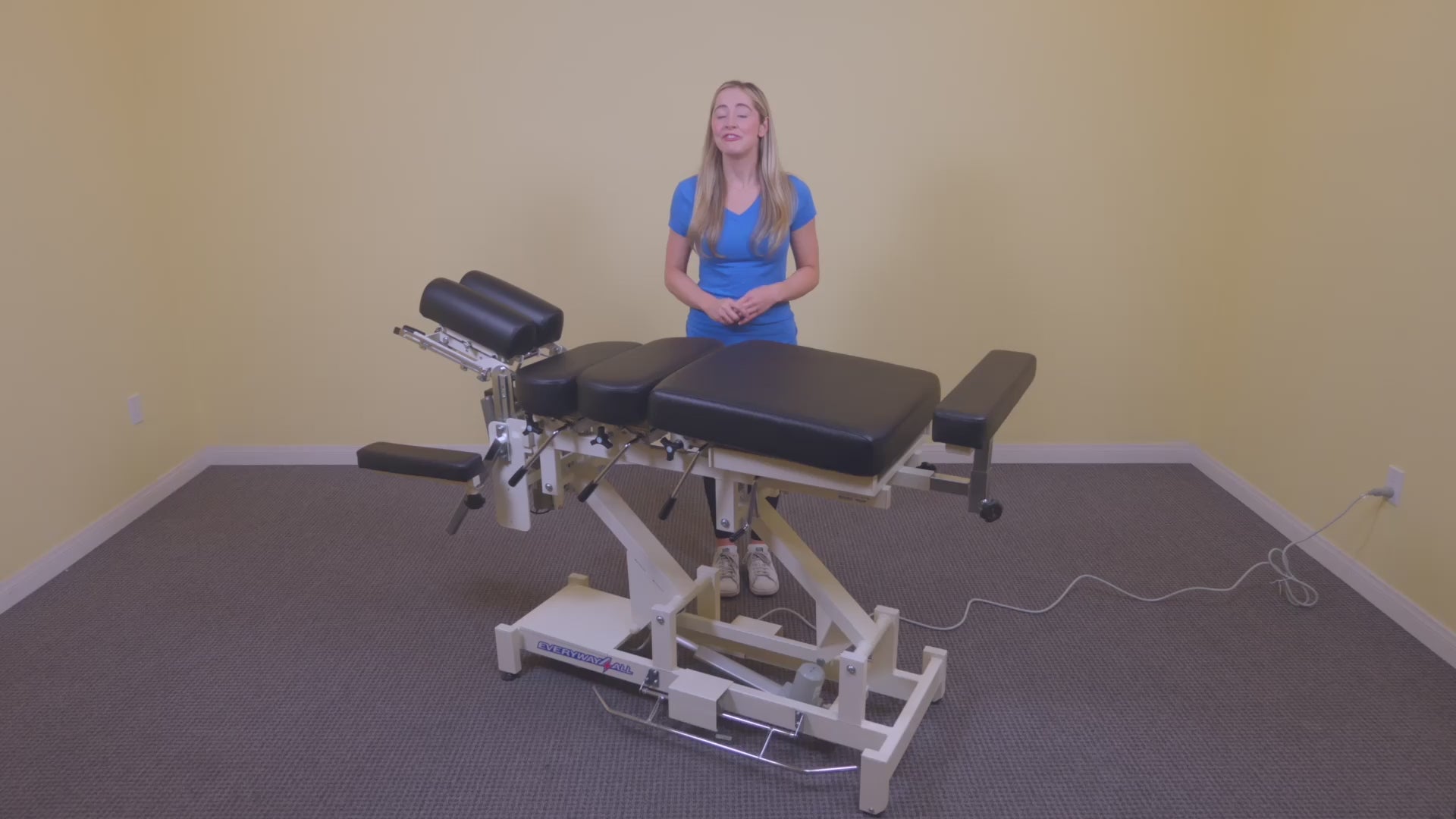

This is a CA130 - 8 Section Electric Chiropractic Table with 4 Sections of Adjustable Tension-Drop at the (1) Head (2) Thorax and (3) Abdomen Sections. Although complex, the CHIROMA electric chiropractic drop table is easy to use for treatments done by a professional. Since the main emphasis of chiropractic is on manual and manipulative therapy for the treatment of joint dysfunctions, especially those of the spinal column, CHIROMA serves as a “Force Extension” as well as “Force Absorbent” platform for chiropractors to perform various tentative tasks without the risks of collateral damage to the patient.

The CA130 CHIROMA electric chiropractic treatment table for sale has the following features:

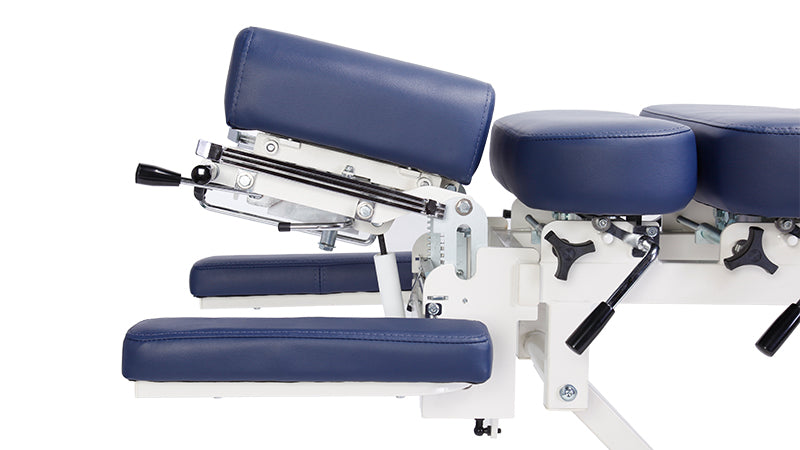

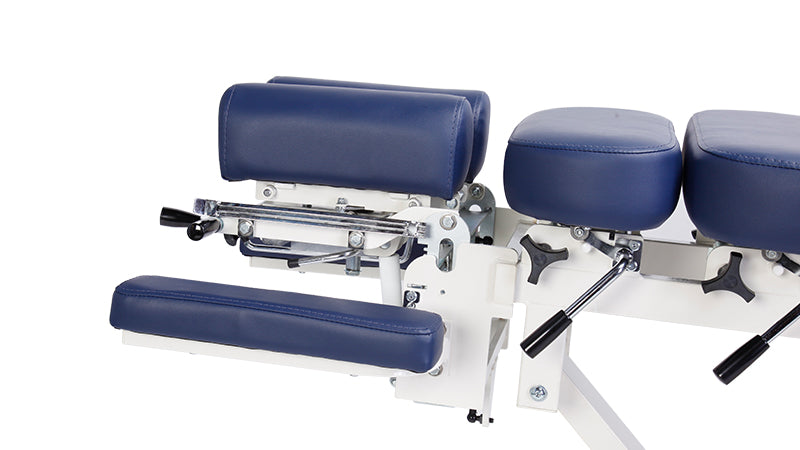

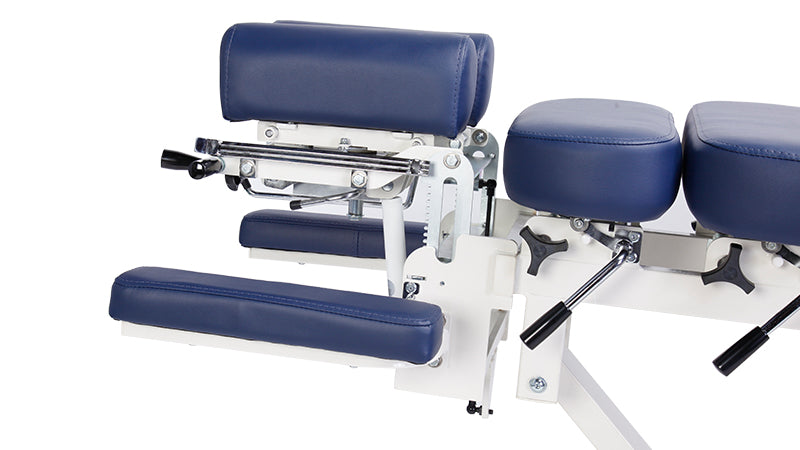

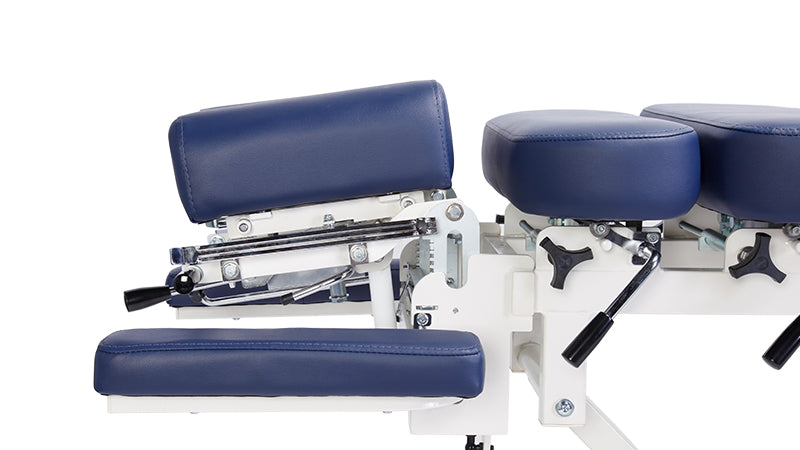

  • Head Section is equipped with 2 motors for Height and Tilting Adjustment
  • 1* Joystick Control for the Head Section's Height and Tilting Adjustment

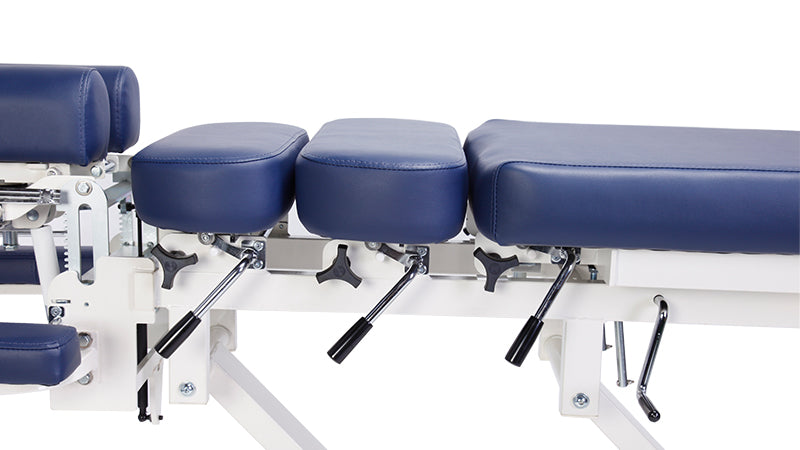

  • 4* Sections are equipped with Adjustable Tension-Drop
  • 2* Adjustable Arm Rests for absolute comfort & reliability
  • 1* Motor for Height Adjustment
  • Twin “Oversized” Pillars for Added Stability
  • 2* Individual Leveling Foot at Head
  • 2* Hauling Wheels at the Rear – Designed to be lifted and moved around by lifting just the Arm Rest
  • 2-side elevating foot bars
  • Maximum User Weight :225 kgs / 496 lbs
  • The adjustable tension drop can be initiated at all sections of our body:
    • Cervical Drop • Thoracic Drop • Lumbar Drop • Pelvic Drop



Technical Specifications:

  • Minimum Height: 540mm / 21.26” inch
  • Maximum Height: 980mm / 38.58” inch
  • Chiropractic Table Top Width: 600mm / 23.62” inch

  • Head Section Length: 310mm / 12.20” inch
  • Arm Rest Length: 410mm / 16.14” inch
  • Thoracic Section Length: 190mm / 7.48” inch
  • Abdominal Section Length: 220mm / 8.66” inch
  • Lumbar & Leg Section Length: 580mm / 22.83” inch
  • Ankle Section Length: 120mm / 4.72” inch
  • Total Length: 1600mm / 63” inch

  • Head Tilt Angles: -15º to +15º
  • Head Elevation: 100mm / 3.93” inch
  • Head-Drop Travel Range: 220mm / 8.66” inch
  • Thoracic-Drop Travel Range: 250mm / 9.84” inch
  • Abdominal-Drop Travel Range: 250mm / 9.84” inch
  • Lumbar & Leg- Drop Travel Range: 170mm / 6.69” inch
  • Lumbar & Leg Tilt / Lift Angle: 0º to 15º
  • Ankle Section Extension Range: 280mm / 11.02” inch

  • Lift Mechanism: Electric
  • Breathing Hole/Plug: N/A

  • Hauler Wheel (Fixed at Leg End): 2
  • Weight Rating (Max. Load): 225kgs / 496lbs

  • Weight: 228 lbs.
  • Package Dimension: 68X28X28”H


Electrical Data:

  • Control Box Input Voltage & Rating: 100~240VAC, 50/60Hz, 2A
  • Control Box Output Voltage: DC 32V, 80VA

  • Actuator Input Voltage: DC 24V
  • Duty cycle: Max. 10% 2min. ON / 18min. OFF
  • Max. Load: Push 8000N
  • Max. Current: Max. 6A


CERTIFIED TO AAMI / CSA / IEC / EN STD

AAMI ES 60601-1, CSA-C22.2 NO. 60601-1

IEC 60601-1, EN 60601-1


The electrical components used are approved by IEC 60601-1


Shipping Policies:

  • We offer standard free shipping to domestic excluded Alaska, Hawaii and Puerto Rico.
  • Standards shipping included Curbside Delivery and Liftgate Service.
(Driver will bring items down to the ground on the driveway of accessible or the curb, customer is responsible for bringing items inside when delivered.)
  • If you require the item to be delivered inside of the building (Inside Delivery), or you need the carrier unbox and assembly for you (White- Glove services), please contact us for the freight quote before purchasing.

Warranty policy:

  1. 12-month on upholstery, head/foot/switch controls, castors leveling foot, and gas struts
  2. 24-month on motorized actuator, control box, and metal side bars
  3. 36-month on table frame and table pillars
